Balers

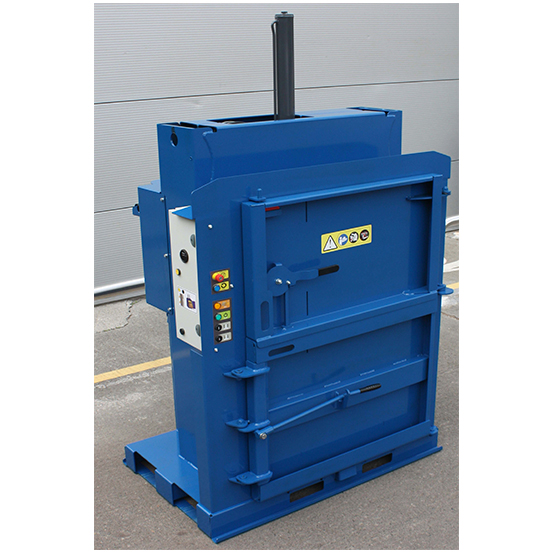

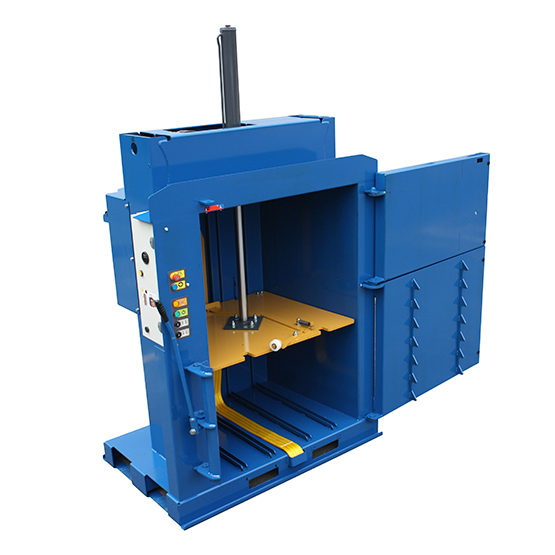

Compact 100
Baler Features
- A mid range baler with easy loading for large size cardboard boxes.
- Retaining Claws to reduce spring back of material in the baler chamber.

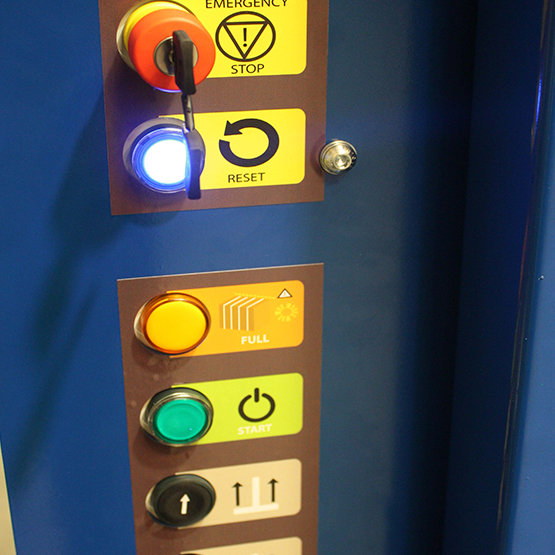

- PLC Panel with Automatic compaction Cycles, Key lock E-stop,Bale full light and hour counte.
Optional Extras
- Galvanised Finish.
- Available in 380/400 Volt power supply.

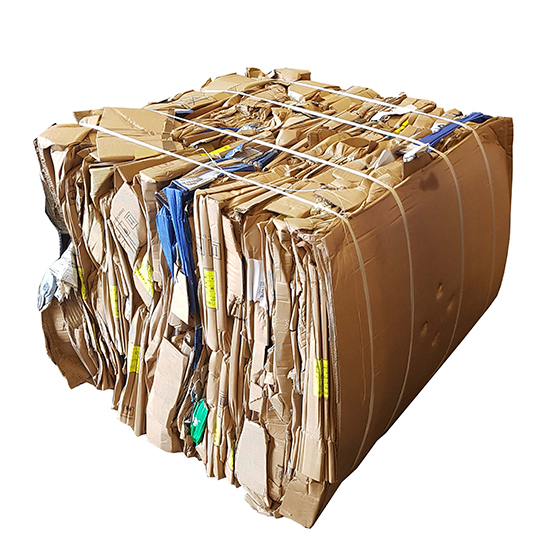

| BALER DIMENSIONS | BALE DIMENSIONS |
|---|---|
| Height: 2.371 m | Height: 0.847 m |
| Width: 1.388 m | Width: 0.980 m |
| Depth: 1.046 m | Depth: 0.800 m |
| Weight: 780 kg | Weight: up to 100 kg |
| Transportation Ht: 1.876 m | Cycle Times: 28 seconds |
| Power Supply: 220 – 240 Volt (single phase) | LOADING APERTURE SIZES |
| Motor: 1.5 kW 13 Amp | Height: 0.466 m |
| Pressing Force: up to 6 Ton | Depth: 0.800 m |
| Noise Level: 68 decibels | Width: 0.980 m |
