Horizontal Balers

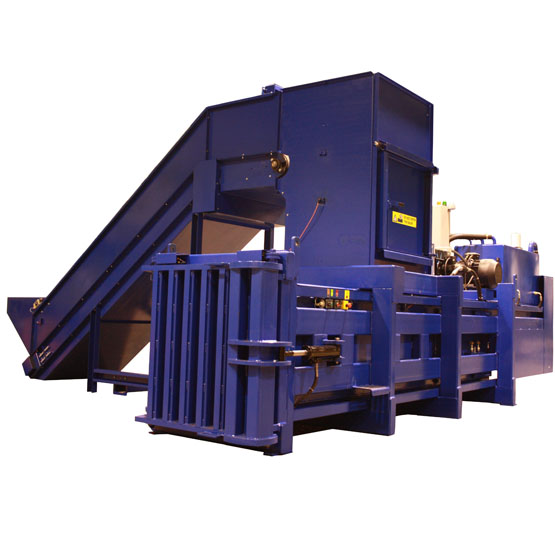

HZ70T Horizontal Baler
Baler Features
- PLC controls offers safe and easy operation.
- Removable top and bottom shear blades.
- Lower photo eye for Automatic start /stop.
- 6 Oil filled cast Nylon slide for plunger guides.
- Full stroke compaction.
- Automatic shear jam correction.
- Hydraulic door latch with safety interlock.
- Left & right door swing.
- 50/60/70 ton Auto settings.
Optional Extras
- Feed conveyer for loading material.

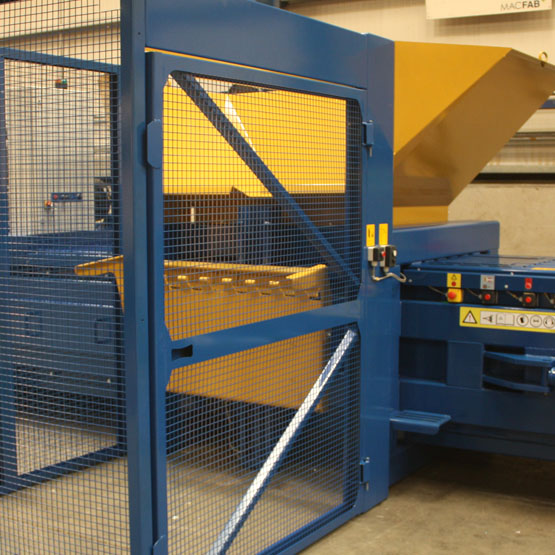

- Bin lifter with safety cage for Loading material .
- Wire pushing system for faster and easier tying.
| BALER DIMENSIONS | BALE DIMENSIONS |
|---|---|
| Height: 2.320 m | Height: 0.750 m |
| Length: 7.000 m | Length: 1.500m |
| Depth: 1.782 m | Depth: 1.100 m |
| Weight: 9T | Weight: up to 550kg |
| Motor: 22 kW 63 Amp. (3-phase 5 pin) | Cycle times: 45 seconds |
| Platen Force: 70T Max. | LOADING APERTURE SIZES |
| Width: 1.200 m | |
| Depth: 1.009 m |
