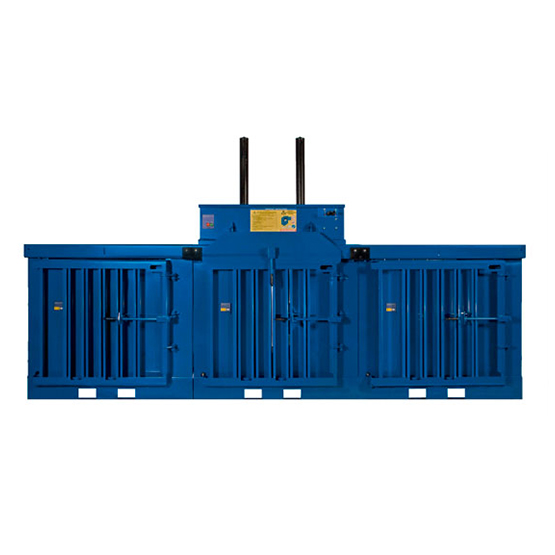

Multi Chamber Balers
200 Multi Baler
Baler Features
- Saves handling time with multiple bale chambers: free to load while other chamber compacts.
- Multiple chambers offer an efficient way of separating different materials before baling.
- Roller guided head for ease of movement.
- Retaining claws to prevent spring back of material in the baler chamber.
- Top loading baler.
- Fully automated bale ejector: simplifies removal of bale.
Optional Extras
- CPLC Panel with Automatic compaction Cycles and Bale full light.
- Additional chambers may be added to this baler (up to 6).
- Available with 400 volt 3-phase power supply.
| BALER DIMENSIONS | BALE DIMENSIONS |
|---|---|
| Height: 2.506 m | Height: 1.000 m |
| Width: 3.260m | Width: 1.000 m |
| Depth: 1.269 m | Depth: 0.800 m |
| Weight: 1400 kg | Weight: 200 kg (depending on material used) |
| Transportation Ht: 1.955 m | Cycle Times: 34 seconds |
| Power Supply: 220 – 240 Volt 1 phase | LOADING APERTURE SIZES |
| Motor: 2.2 kW 16 Amp | Width: 1.074 m |
| Pressing Force: up to 16 Ton | Depth: 0.800 m |
| Noise Level: 72 decibels |
